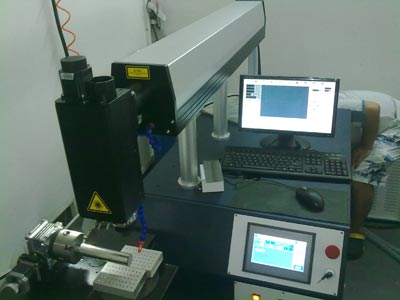

laser welder automatic multi-Axis
-
Description:
Automatic laser welding machine is produced by the application of laser wavelength of 1064 nm pulse laser after beam expander, reflection, focusing radiation surface processing, surface heat through heat pass oriented internal diffusion, through the precise digital control laser pulse width, energy, peak power and repetition frequency parameters, the melting of a workpiece, form a specific pool, so as to realize the processing of the laser welding, precision welding of cannot be achieved by traditional process
Features:
-
1. High stability, the main laser components made in Europe and USA.
2. The video-teaching program software, user friendly, and easy to operate.
3. High single pulse energy, can weld silver, gold, copper, aluminium, stainless steel,
titanium alloy
4. Welding thickness up to 4mm of the 600W laser power system, the welding laser spot size fom 0.2mm to 4mm.
5. laser welding of thin wall materials, precision parts to realize spot welding, butt welding, lap welding, seal welding etc..
6. laser power, weld with high aspect ratio, small heat affected zone, small deformation, high welding speed.
7. high welding quality of smooth and beautiful appearance, no pores, after welding material toughness equals at least the parent material.
8. human body design, LCD display, key operation more simple focus.
9. dimensional ball screw table, imported servo control system, optional rotary table can realize spot welding, welding, welding line circumferential automatic welding, wide application range, high precision, fast speed.
10. Current waveform can be adjusted according to the welding materials of different sets of different waveforms, the welding parameters and welding to match the requirements to achieve the best effect of welding.
Model |
CL-ALW600 |
|---|---|
Laser wavelength |
1064nm |
Max.Average laser power |
600W |
Laser beam spot size-manual adjustment |
0.2-4.0mm |
Pulse duration |
0.1-20ms |
Pulse frequency |
1-100Hz (200Hz optional) |
Positioning method |
Red point indicator with CCD system |
Cooling method |
Water cooling with chiller |
Working conditions |
|
Mains |
AC380V±5%,50Hz,3phase with earth wire |
Power consumption |
16KW Max. |
Environment temperature |
10℃-40℃ |
Ventilation |
Good |
Dust |
Few |
Vibration |
No |
Control system |
|
Control system |
Computer with CNC control card |
Software system |
Laser CNC control software, Windows system |
Program system |
Video teaching CNC visualization programming |
Format support |
PLT,DXF etc |
Mechanical |
|
Work bench size |
300mm x 400mm |
Travel distance of each axis |
X:300,Y:200,Z:260,Rotary axis:100mm |
Other size optional |
|
Positioning accuracy |
0.02mm |
Repeating positioning accuracy |
±0.01mm |
Loading ability of workbench |
50kg |
Dimensions of the host system |
1500mm×800mm×1500mm |
| www.cncoletech.com | |
Suitable materials and application:
Widely used in digital IT products welding, automobile parts welding, gasoline filter weld, automobile tail gas sensor weld, solenoid valve welding, and seal welding lithium battery ,mobile phone battery and energy battery welding, silicon steel plate welding,
sensor welding, motor blade welding, electronic components welding, teapot welding,
jewelry welding , motor welding, kitchenware welding.
